1.Adopt low-temperature high-conductivity ITO coating technology with doped modified ITO to suppress the decline of carrier activity under extremely low temperatures, eliminating sharp impedance rise, sampling signal attenuation, point loss and touch stuttering in cold environments.
2.Replace normal-temperature silver paste with industrial-grade high-low temperature conductive silver ink featuring excellent thermal expansion and contraction ductility. It remains crack-free and free of film peeling under thermal cycling ranging from -40℃ to 85℃. The silver traces are fully covered with insulating protective ink to isolate condensation and corrosion induced by temperature difference stress.
3.Eliminate ordinary double-sided tape for frame sealing and adopt silicone foamed frame sealant, which supports a wide temperature range of -45℃ to 100℃. With superior elasticity, it prevents edge cracking under thermal expansion and contraction.
4.
5.Install ePTFE waterproof breathable balance membranes on the frame to equalize interlayer air pressure under high and low temperatures, preventing sealant tearing and moisture ingress caused by negative pressure.
6.The entire rear surface of the sensor is covered with an ITO shielding film or copper foil shielding layer, laminated with high-low temperature resistant conductive adhesive and multi-point grounded. It isolates dual interference consisting of EMI from construction machinery inverters and motors plus temperature drift, ensuring stable baseline without shift under high temperatures.
7.Completely phase out consumer-grade ICs (0~40°C operating range) and adopt industrial wide-temperature capacitive touch ICs with specifications: operating temperature from -40°C to +85°C, storage temperature from -45°C to 125°C.
How to Improve the Environmental Adaptability of Touch Modules for Heavy Machinery Applications1.Closed-cell silicone foamed waterproof gasket with Shore A 30~40 high resilience, oil, mud and water resistance, operating temperature range of -40℃ to 100℃. Ordinary EVA and double-sided adhesive are prohibited, as they will harden and lose elasticity after thermal cycling.
2.The housing is designed with concave-convex rabbet waterproof grooves. The cover glass is embedded by pressing into the gasket to prevent high-pressure water from directly hitting the glue seam. The compression rate of the single-layer gasket is controlled between 25% and 35%.
3.The cover glass is equipped with high-durability AF hydrophobic coating as standard, enabling water droplets to roll off rapidly during high-pressure washing and reducing water film retention at seams.
4.A rubber waterproof cable gland is installed where the FPC passes through the housing to fully fill the gap between the wire hole and FPC and block capillary water absorption.
5.There is no air interlayer between the cover glass and sensor, eliminating cavities that trap water and form fog. No conductive water film will form on inner walls under high-pressure washing or rain exposure, fundamentally eradicating condensation-induced ghost touches and jump points.
6.Silicone edge sealing adhesive is coated around the periphery of the module to block water vapor from penetrating the OCA interface through the side gaps of the glass and prevent delamination and water ingress.
7.The entire backplate is laminated with an aluminum-plastic protective sheet, and sealant is applied along the backplate edges. The module forms an independent waterproof unit, so minor water seepage from the housing cannot reach the sensing layer.

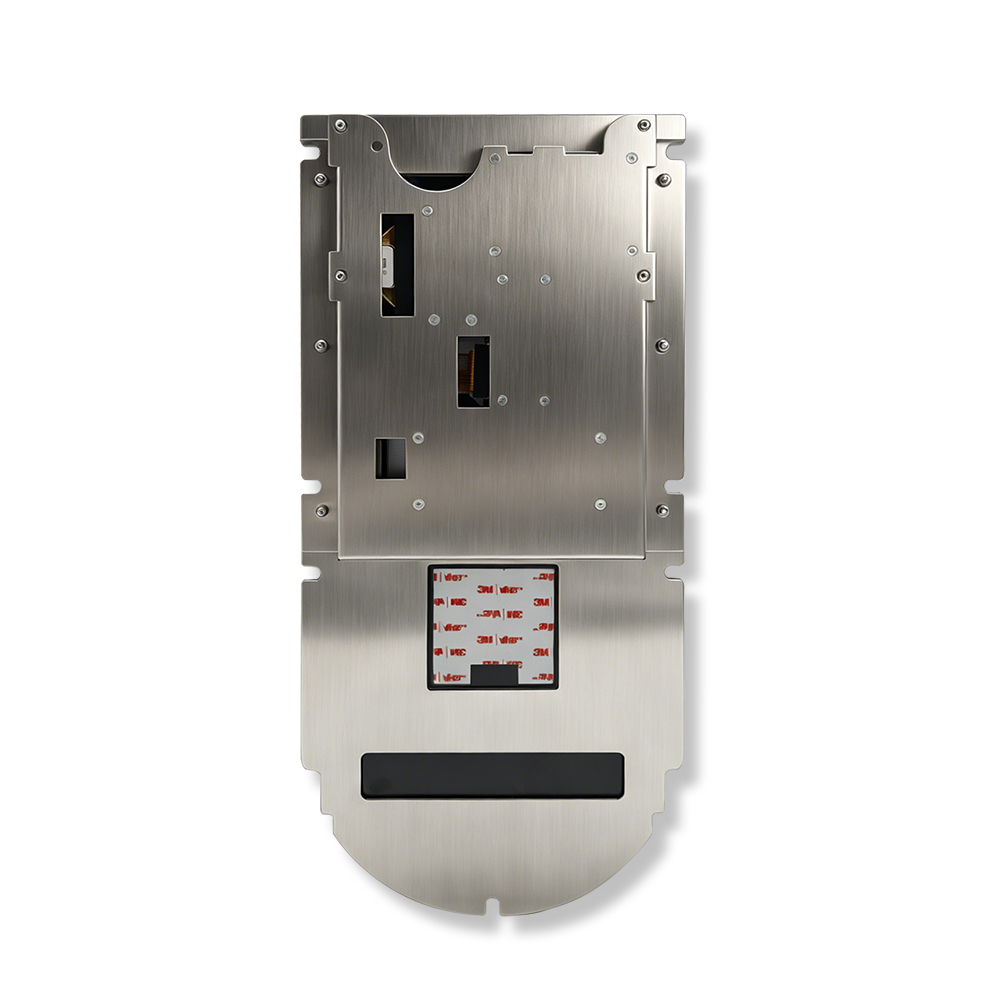

8.A metal protective backplate is mounted on the rear of the touch module, with sealant applied all around the backplate to prevent mud and water from seeping in through rear gaps.
FAQQ1: How does the G+G full lamination structure solve fogging and ghost touch issues?A1: There is no air cavity between cover glass and sensor after full lamination, so no water storage or internal condensation occurs during rain or high-pressure washing. No conductive water film forms inside the module, fundamentally eliminating condensation-caused ghost touches and jump points.
Q2: What are the advantages of closed-cell silicone foamed gaskets over EVA and regular double-sided tape?A2: The silicone gasket features Shore A 30~40 high resilience, oil, mud and water resistance, and a -40℃~100℃ temperature range. EVA and common double-sided tape will harden and lose elasticity after repeated hot-cold cycles, leading to water leakage. The gasket compression ratio is strictly controlled at 25%~35% for stable sealing.
Q3: What multi-layer waterproof structures prevent moisture infiltration for heavy equipment?A3: Multiple waterproof measures are adopted: concave-convex rabbet housing structure, embedded cover glass installation, peripheral silicone edge sealing glue, rubber FPC waterproof cable glands, full aluminum-plastic/metal backplate with edge sealant, and built-in molecular sieve desiccants plus ePTFE breathable membranes, forming an independent fully sealed waterproof unit.
Q4: Why equip the cover glass with standard high-durability AF hydrophobic coating?A4: The AF coating enables rapid sliding of water droplets during high-pressure flushing, greatly reducing residual water film on seams. It works together with the sealing structure to cut off capillary water absorption and lower the risk of moisture seeping into interlayers.
Q5: How does the module maintain stable touch performance under extreme wide temperature environments?A5: It uses low-temperature high-conductivity doped modified ITO, industrial high-low temperature resistant silver ink, long-acting interlayer desiccants, and industrial wide-temperature touch ICs (-40℃~+85℃ operation). The matched wide-temperature silicone sealants avoid cracking and impedance surges at ultra-low temperatures, preventing point loss and touch stuttering.
